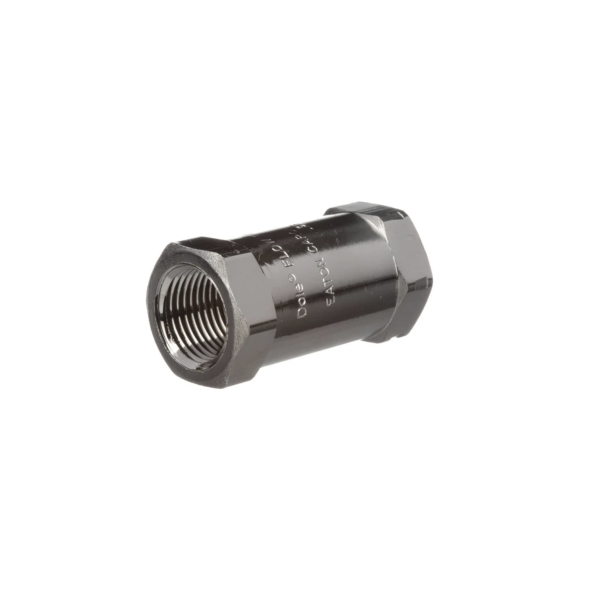

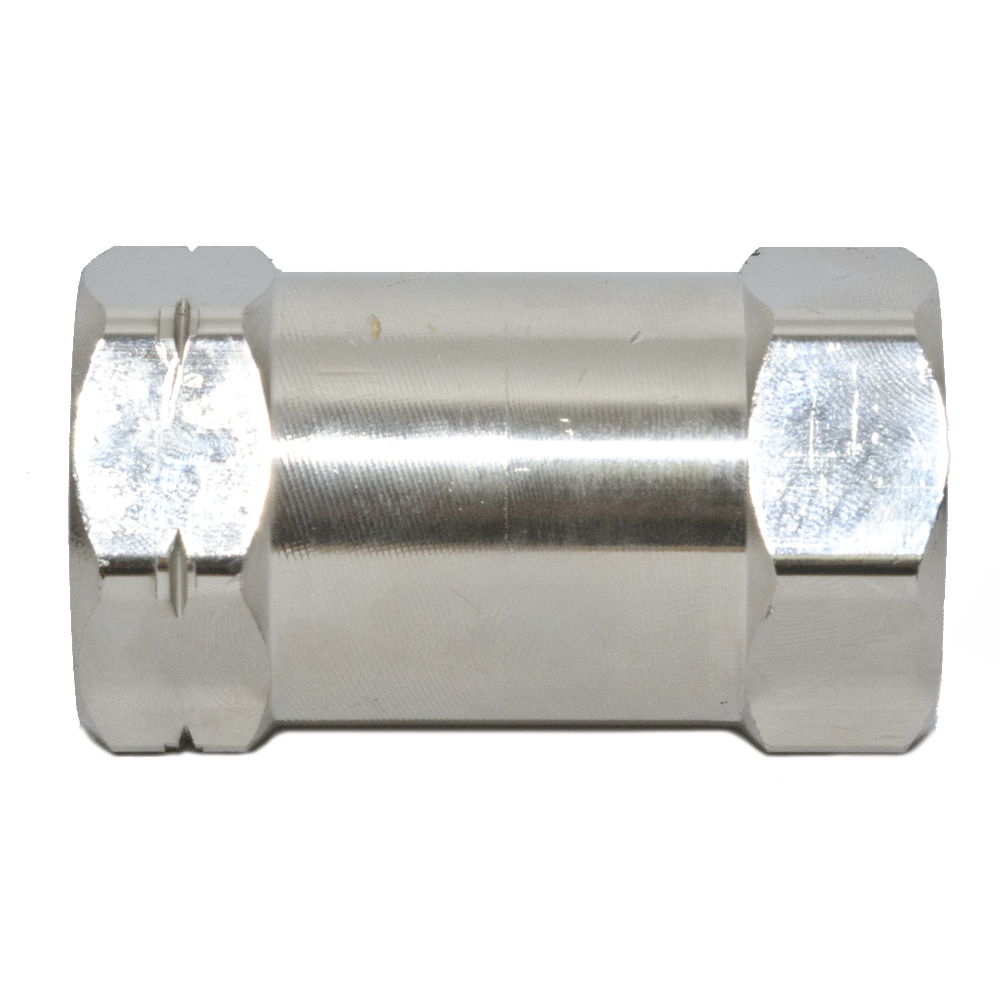

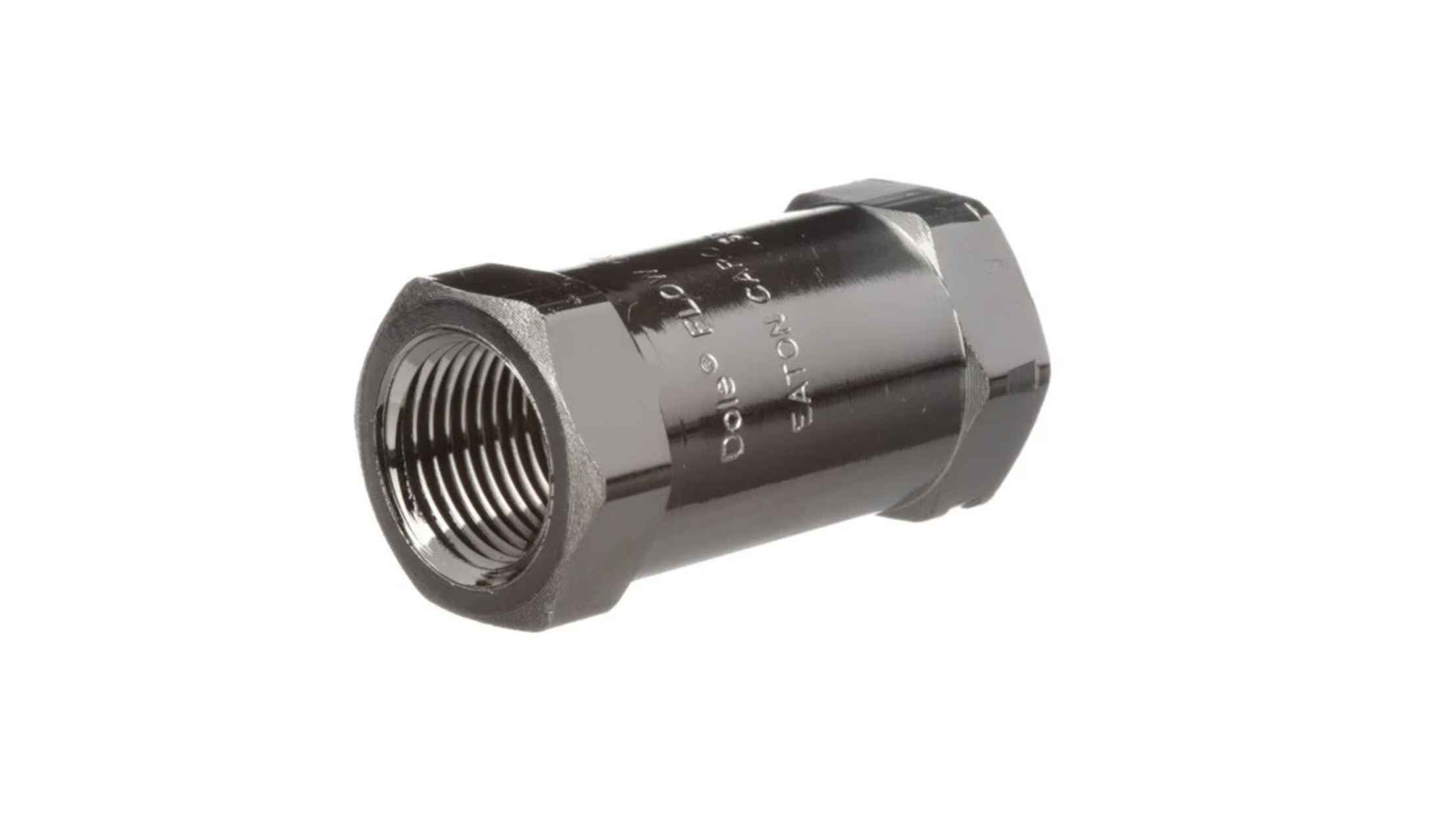

30.0 GPM Flo-Trol Flow Regulator 1" FPT Female No Lead CDX30
SKU#
CDX30
In stock
Constant Flow Rates
Used with Booster Pump and Domestic Water Systems
NSF/ANSI 61 and 372 Certified
Stainless Steel Construction
Laser engraved flow rate and size
Flo-Trol® automatic flow control valves are designed to give constant flow over a wide pressure range. The internal controlling mechanism has no moving part, consisting only of a flexible orifice that varies with applied pressure maintaining a constant flow rate. Flow rates are maintained to within ±15% between 15 and 125 PSI (1 to 8.6 bar). The flow rate varies due to manufacturing tolerances and water temperatures. Valve bodies are stainless steel (not chrome or nickel-plated brass) with a Buna-N orifice (NSF/ANSI 61 certified).
| Flow Rate | 12 |
|---|---|
| Discharge Connection | 1" Female NPT |
| Material | Stainless Steel |
| Model # | CDX30 |
| Performance Chart | None |
| Shipping Weight | 2 |
30.0 GPM Flo-Trol Flow Regulator 1" FPT Female No Lead CDX30
$65.10
